PE HDPE Pipe Extruder Fully Automatic Plastic Pipe Making Machine

  • 1
  • 2
  • 3
  • 4

Brand Name : AORUI

Model Number : SJ75/33 SJ90/33

Certification : CE Certificate

Place of Origin : China

MOQ : 1 set

Price : USD

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 10 SETS PER MONTH

Delivery Time : 35 Days

Packaging Details : Regular package

Condition : New

Brand name : AORUI

Automatic grade : Fully automatic

Screw design : Single screw

Certificate : CE certificate

Port of lading : Qingdao Port

Place of original : China

Inverter brand : ABB

Contact Now

PE HDPE Pipe Extruder ,Extrusion Line For The Production of HDPE Pipes , PE Pipe Making Machine

Introduction of PE Pipe Production Line:

A PE (polyethylene) pipe production line typically consists of several key components.

Raw Material Handling:

Polyethylene resin, the raw material, is initially fed into the production line. This material is often provided in the form of granules or pellets.

Extrusion Process:

The extrusion process involves melting the polyethylene resin and forming it into a continuous profile. This is usually done using an extruder, which is a machine that pushes the molten material through a die to shape it into a pipe.

Pipe Cooling:

After extrusion, the hot pipe needs to be cooled to ensure its proper form and structure. Cooling can be achieved through various methods, such as air or water cooling.

Sizing and Shaping:

The pipe is then sized and shaped according to the desired specifications. This can be done using vacuum or pressure sizing equipment.

Marking and Printing:

Information such as brand name, size, and other relevant details may be printed or marked on the pipe for identification and compliance purposes.

Cutting and Stacking:

Once the pipe has been formed and marked, it is cut into specific lengths and stacked for further handling or packaging.

Quality Control:

Quality control measures are implemented throughout the production process. This may include monitoring the thickness and diameter of the pipe, as well as checking for any defects.

Packaging:

The finished pipes are packaged for storage and transportation. Packaging may vary depending on the size and type of pipes being produced.

Technical Parameter:

Model Extruder Pipe diameter Motor power Capacity L/D Ratio
PEG-63 SJ65 20-63 37 80-150 33:1
PEG-110 SJ65 20-110 55 100-200 33:1
PEG-160 SJ75 50-160 75 150-250 33:1
PEG-250 SJ60 50-250 90 400-500 38:1
PEG-315 SJ90 110-315 160 280-400 33:1
PEG-450 SJ75 200-450 160 600-800 38:1
PEG-630 SJ90 315-630 250 800-1000 38:1
PEG-800 SJ150 450-800 360 600-1300 33:1
PEG-1000 SJ150 630-1000 380 800-1500 33:1
PEG-1200 SJ120/SJ90 800-1200 450 900-1800 33:1

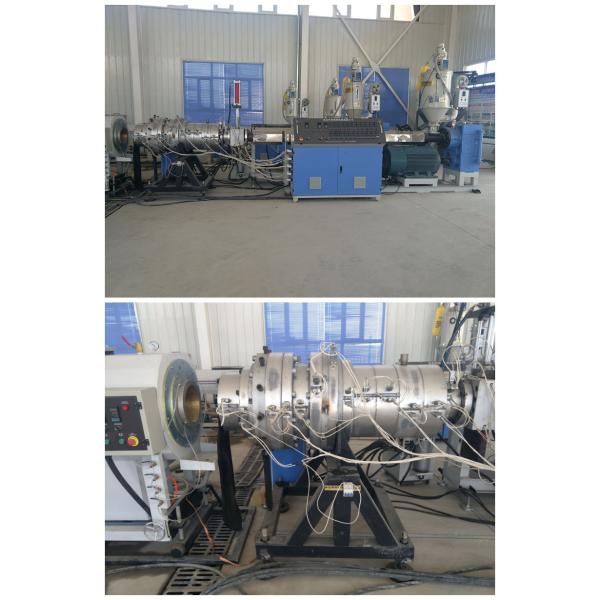

Machine display:

PE HDPE Pipe Extruder Fully Automatic Plastic Pipe Making MachinePE HDPE Pipe Extruder Fully Automatic Plastic Pipe Making Machine
